規格
■ CFC free refrigerants
■ All units capable of heating and refrigeration applications
■ Safety：Over temperature cut-out with thermal fuse
■ Optional：Adjustable high temp. & low liquid level safety
Specifications：Economy Series & Tuch Screen Series

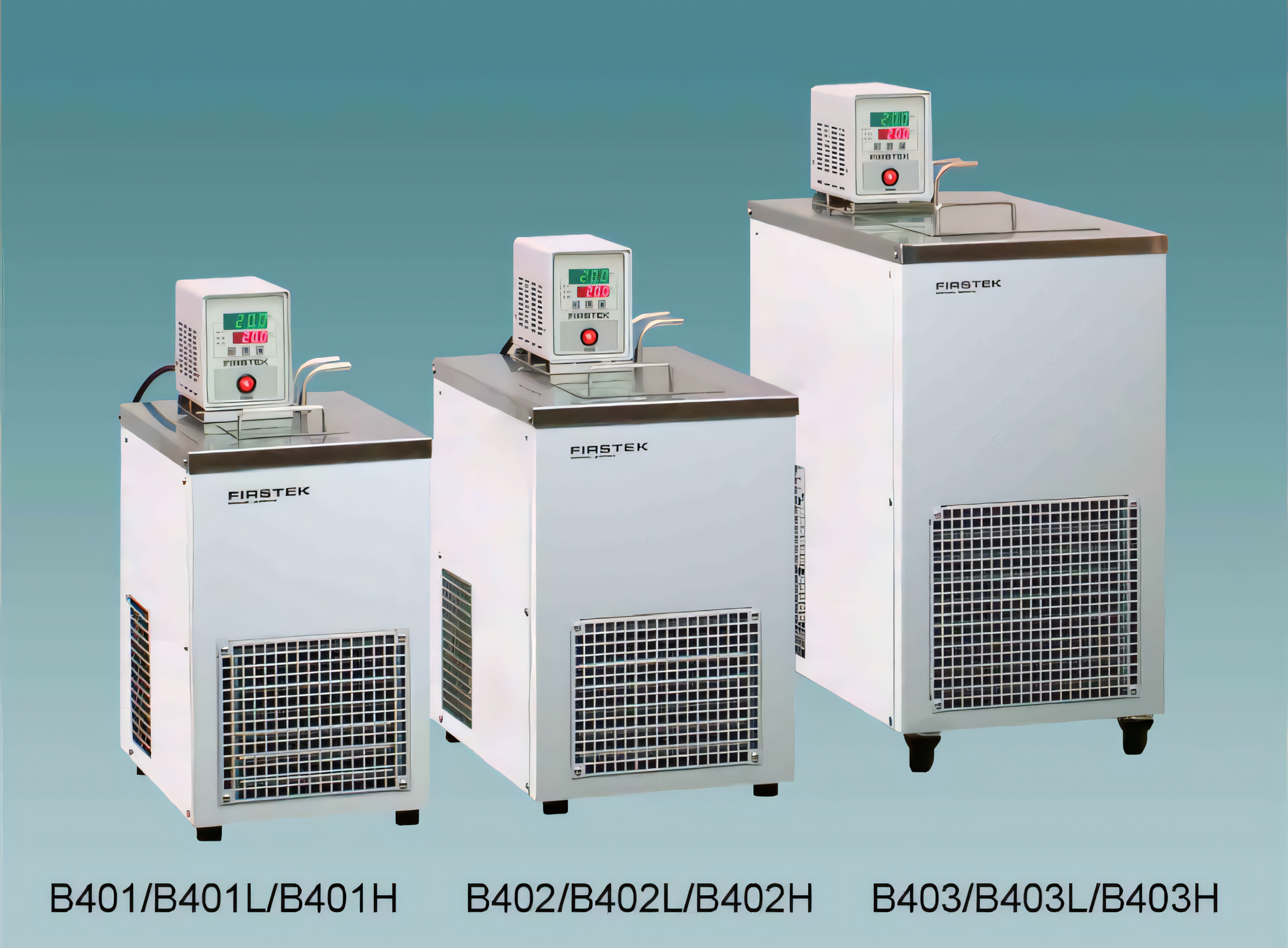

| MODEL | B401/B401L/B401H | B402/B402L/B402H | B403/B403L/B403H |
| Temperature | |||
| Working range | -25°C~150℃ | -25°C〜150°C | -25°C〜150°C |
| -20℃~100℃/0℃~100℃ | -20℃~100℃/0℃~100℃ | -20℃~100℃/0℃~100℃ | |
| Stability | ±0.1°C | ±0.1°C | ±0.1°C |

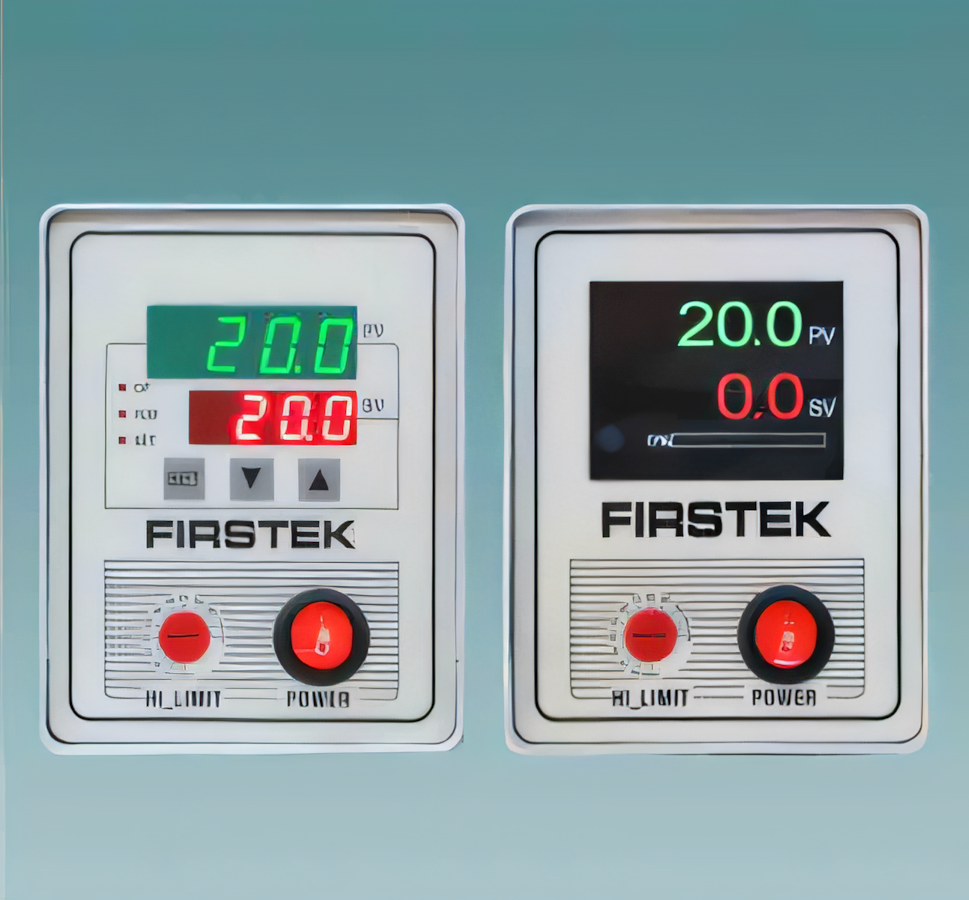

| Setting & readout | Digital | Digital | Digital |
| Heater | 1KW | 1KW | 2KW |
| Cooling Capacity | (at 7.2°C) | ||
| BTU/hr | 1330 | 2907 | 6165 |
| Kcal/hr | 335 | 732 | 1554 |
| Watts | 390 | 852 | 1807 |
| Refrigerant | R134a | R134a | R134a |
| 320g / 320g / 280g | 330g / 330g / 290g | 390g / 390g / 480g | |

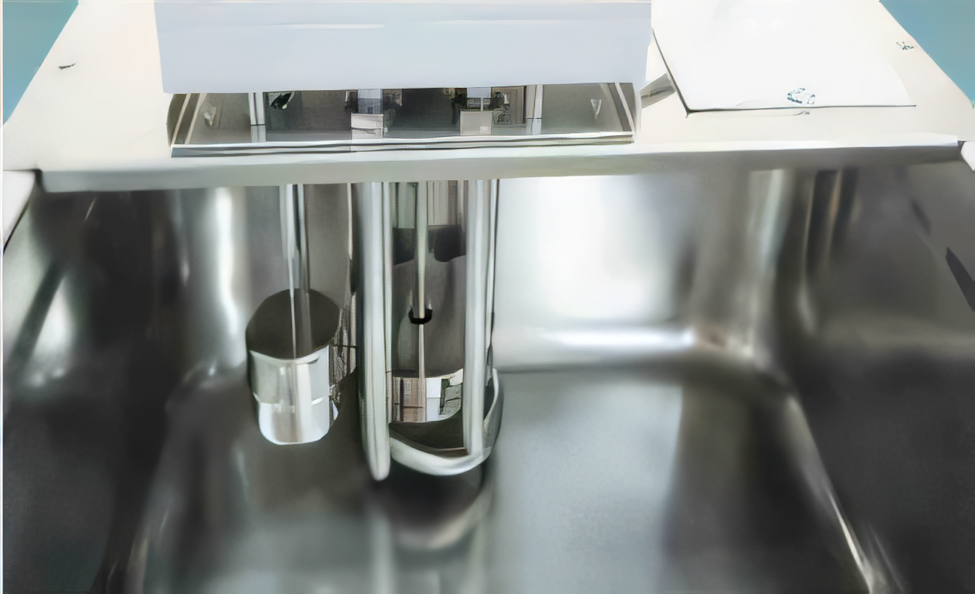

| Stirring | By built-in Circulating Pump | ||
| Pumping flow | 7 Liters/min. 0.2kgf/cm2 | 11.7 Liters | 20 Liters |
| Capacity | 6.7 Liters | ||
| Dimension (cm) | |||
| Lid opening | W11.5xD10 | W15xD15 | W20 x D23 |
| Reservoir | W16/D28/H15 | W21 /D31 /H17 | W22 / D41 / H22 |
| Overall | W27 / D43 / H57 | W30.5 / D46.5 / H60 | W33 / D56 / H75 |
| Power source | 110/220V 60/50Hz 14/7A | 110/220V 60/50Hz 14/7A | 220V 60/50Hz 12A |
| Weight | 35 kg | 40 kg | 50 kg |
